Infrastructure

INFRASTRUCTURE

Unit-1: Working Space – 10000 Sq ft

Unit-2: Working Space – 11000 Sq ft

With crane facilities as required

MANUFACTURING CAPABILITIES

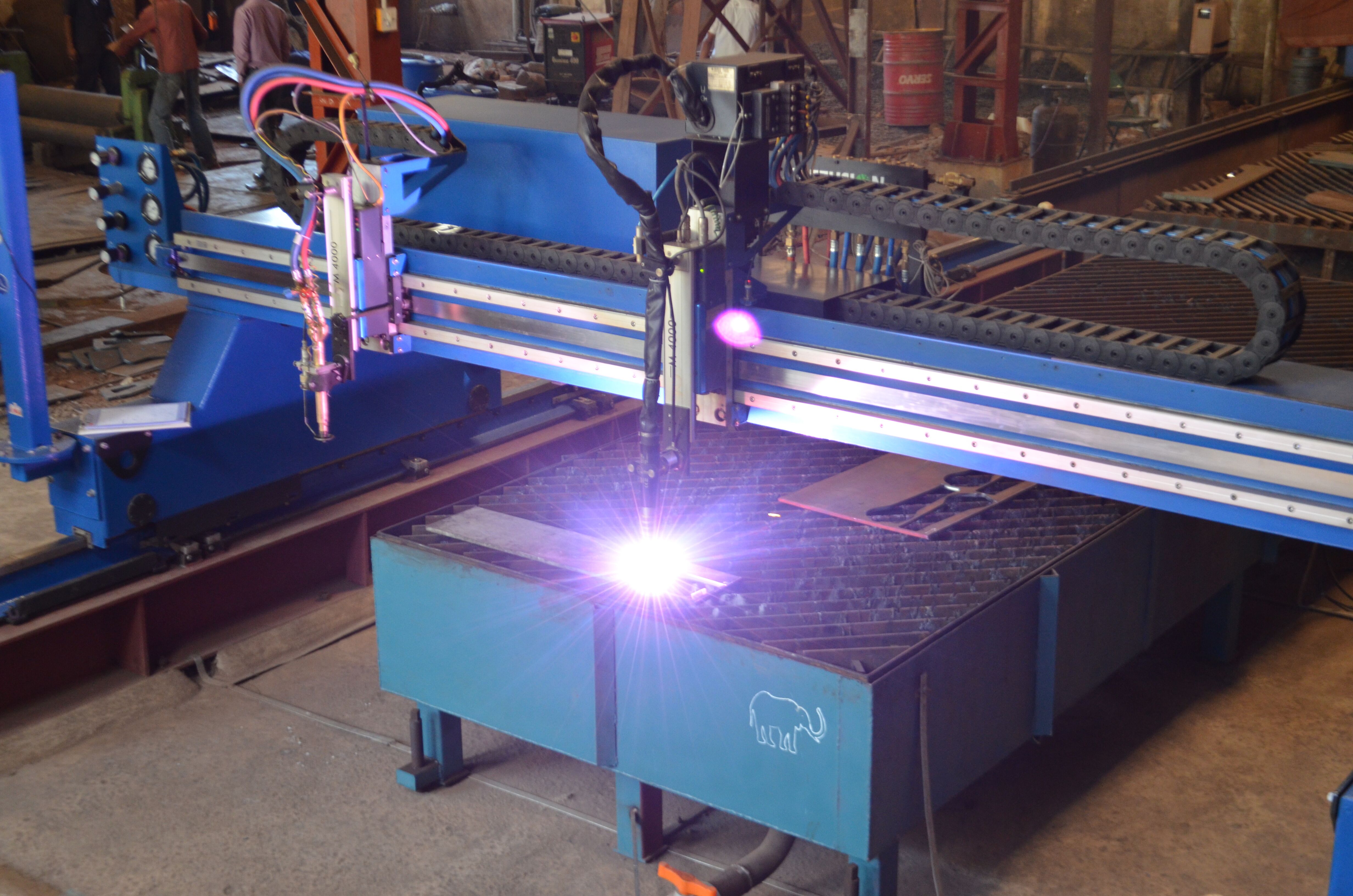

CNC PLASMA & OXI FUEL CUTTING

Make

:

MGM

POWER
:
Hi-Focus
CAPACITY
:
PLASMA MS SS & AL up to 40mm OXY MS up to 100mm
WIDTH X LENGTH & NUMBER OF MACHINE
:
3.0mtr x 4.5mtr &
1

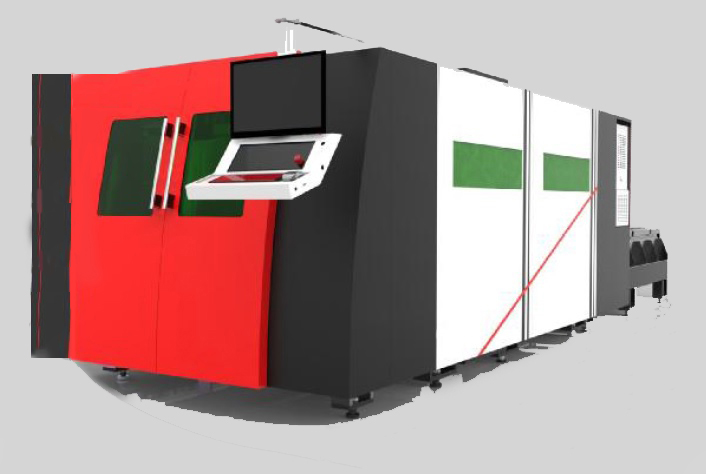

CNC LASER CUTTING

Make

:

SIL INDIA

POWER
:
1.5KW
CAPACITY
:
MS up to 10mm , SS & AL up to 4mm
WIDTH X LENGTH & NUMBER OF MACHINE
:
3.0mtr x 1.5mtr &
1

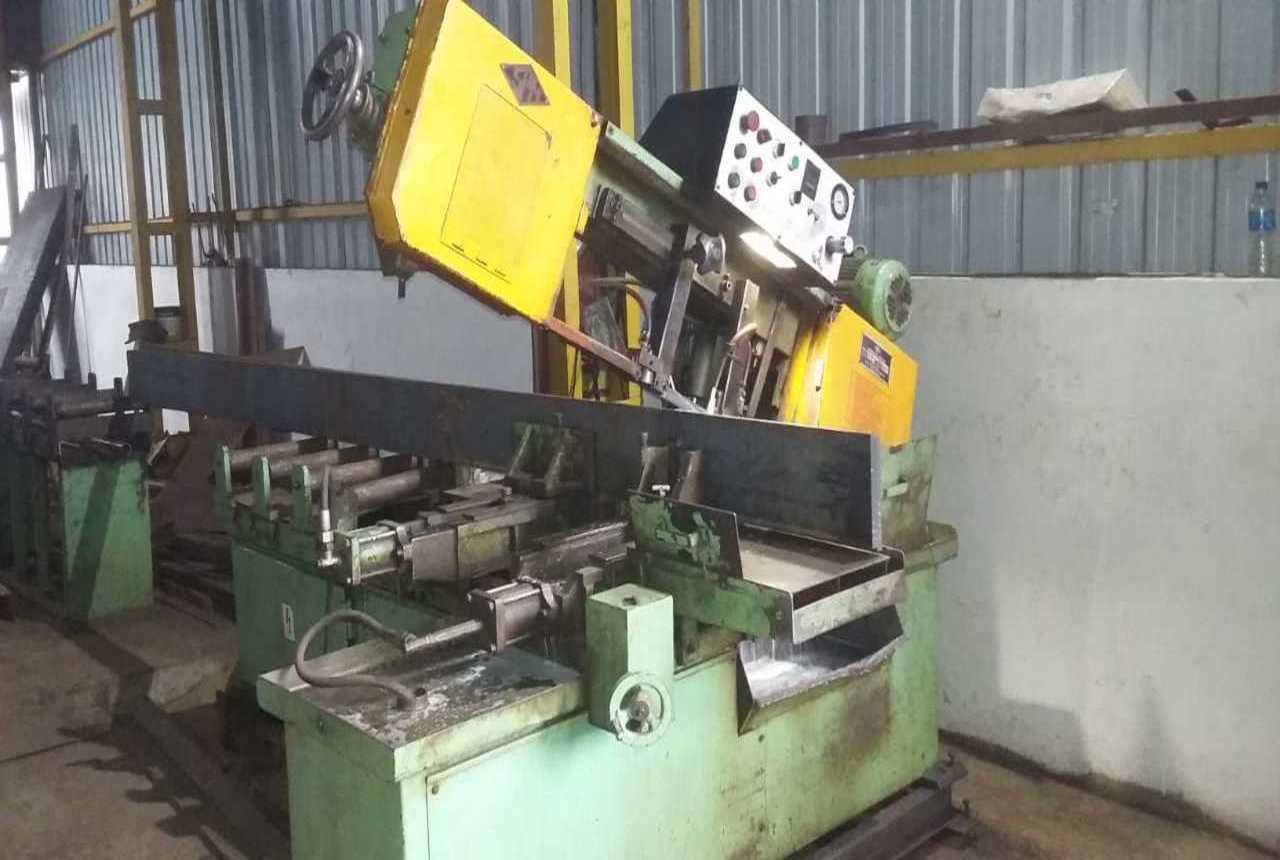

Bendsaw Cutting

Make
:
SPM
Capacity
:
up to 25mm OD
Type
:
SEMI AUTOMATIC
NUMBER OF MACHINE
:
1

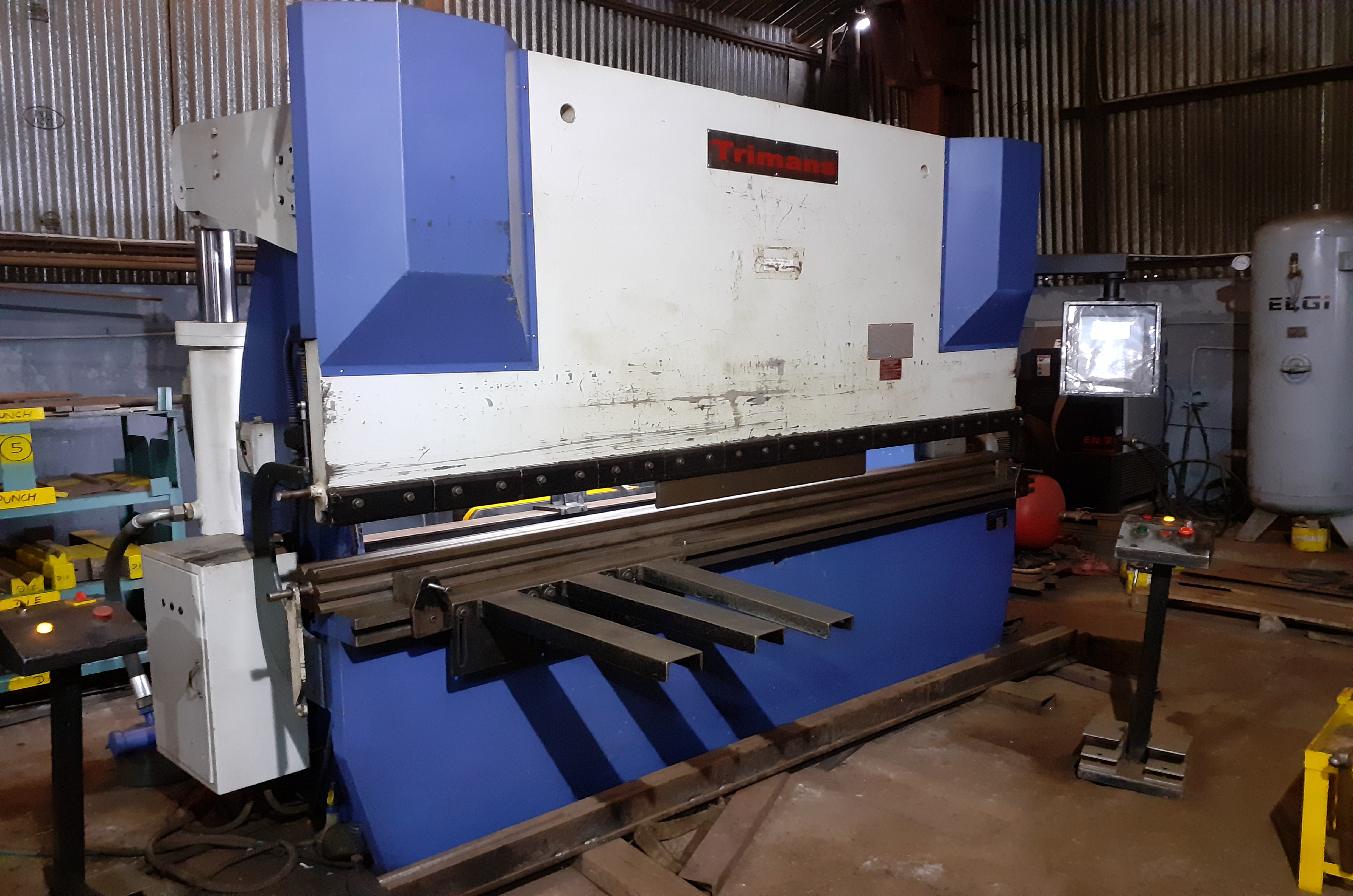

CNC PRESS BREAK

MAKE
:
TRIMAS
CAPACITY
:
125MT – 6mm x 3.0mtr
TYPE
:
3000mm
NUMBER OF MACHINE
:
1

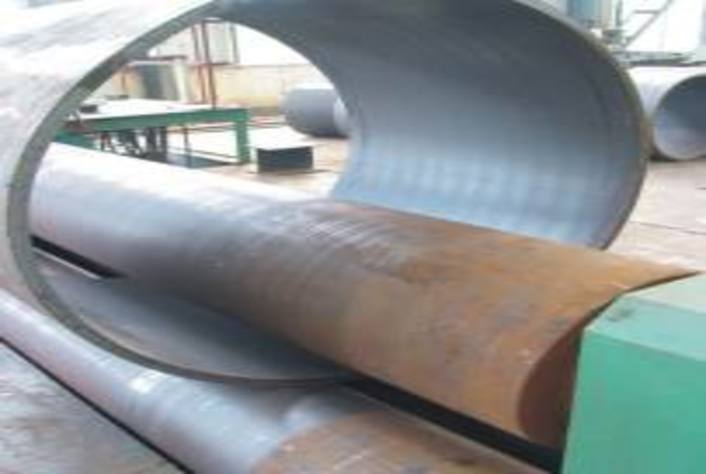

PLATE BENDING MACHINE

MAKE
:
LOCAL
CAPACITY
:
16mm for 2.0Mtr, Min OD 125mm for 5mm
TYPE
:
MANUAL
NUMBER OF MACHINE
:
2

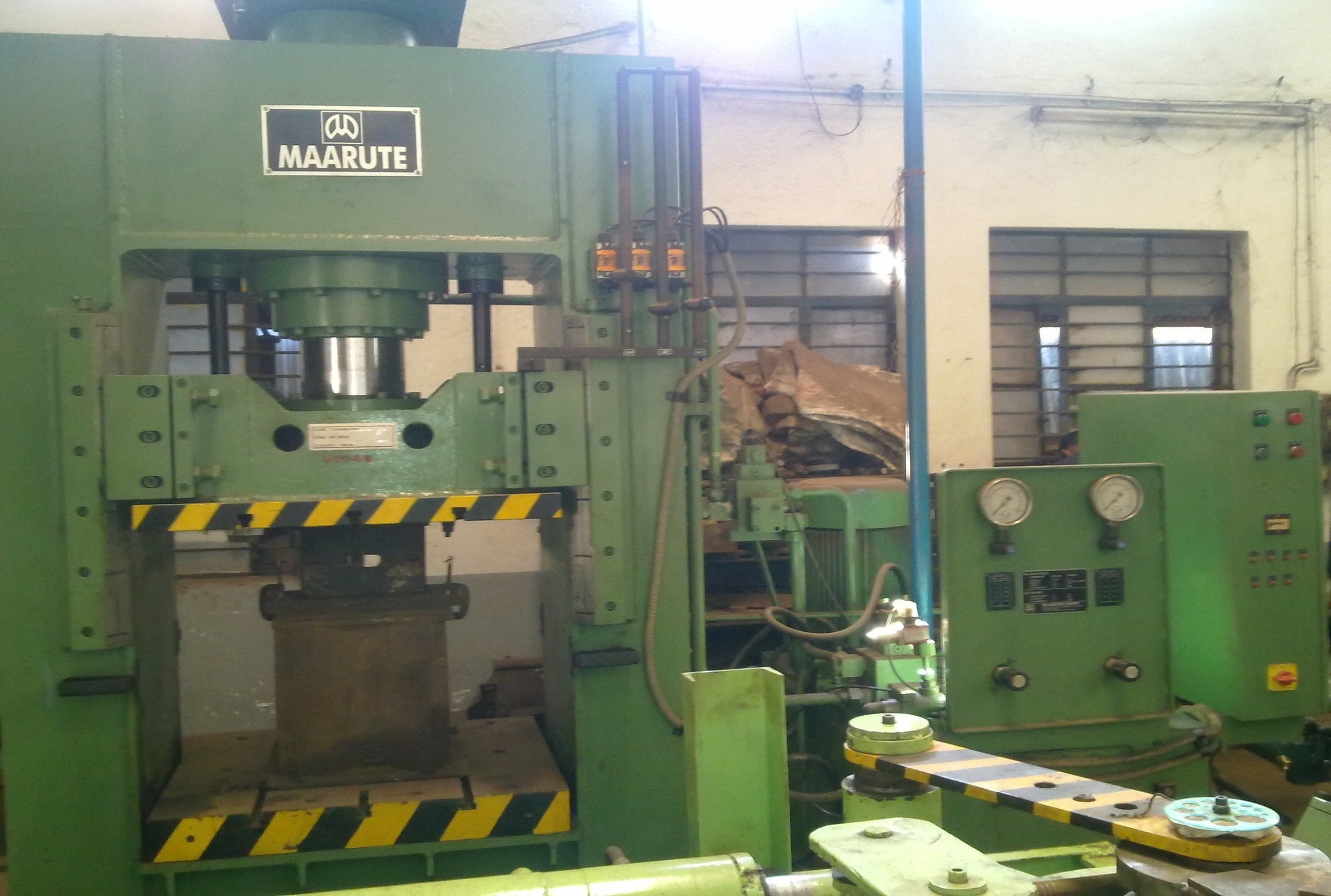

HYDRAULIC PRESS

MAKE
:
MARUTI
CAPACITY
:
120T WITH DEEP DRAW
TYPE
:
MANNUAL
NUMBER OF MACHINE & OTHER
:
1 &
MECHNICAL PRESSES

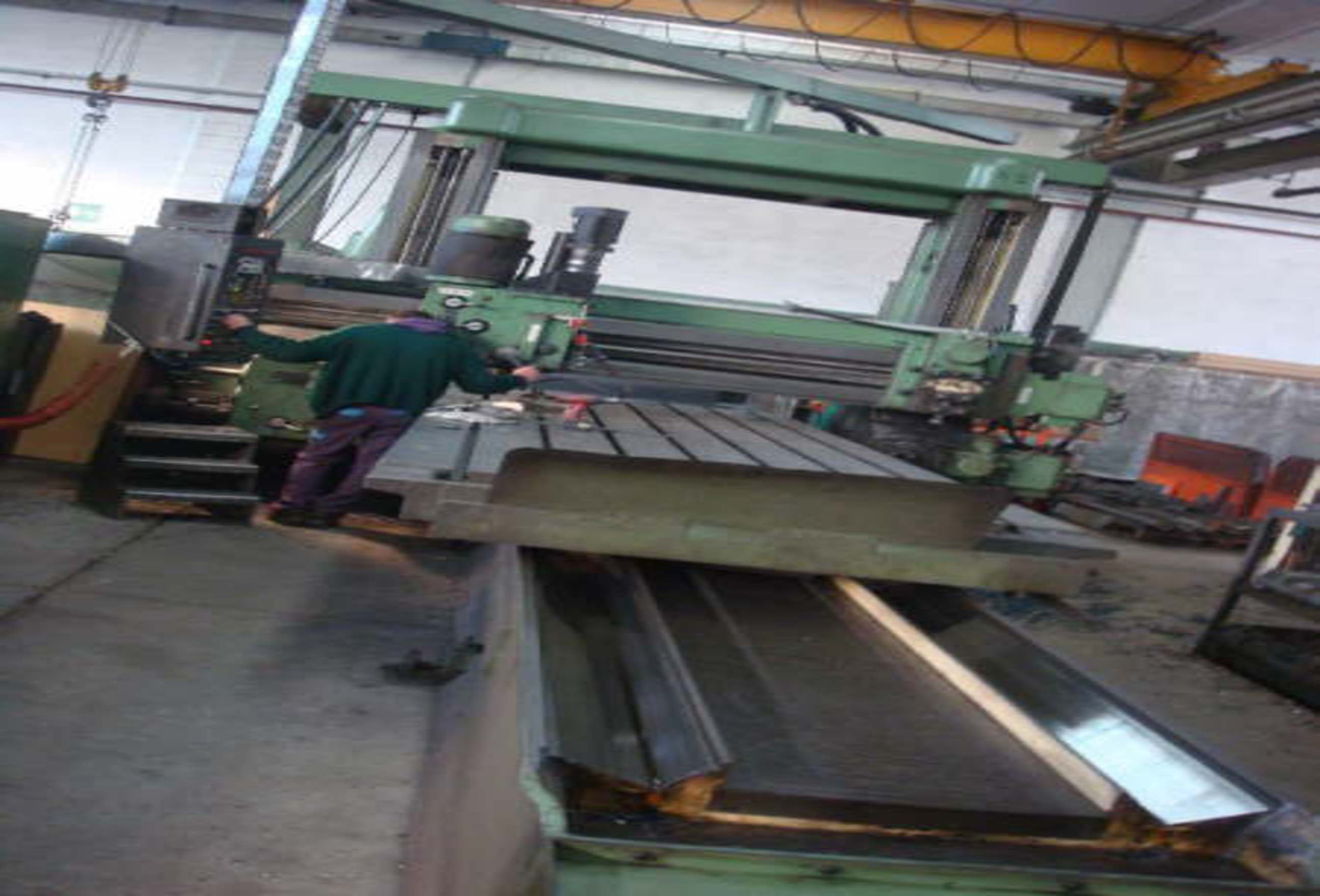

PLANO MILLER

MAKE
:
BWF
X AXIS TRAVEL
:
2,000 mm
Y AXIS TRAVEL
:
900 mm
Z AXIS TRAVEL
:
1,000 mm
TYPE
:
MANUAL
NUMBER OF MACHINE
:
1

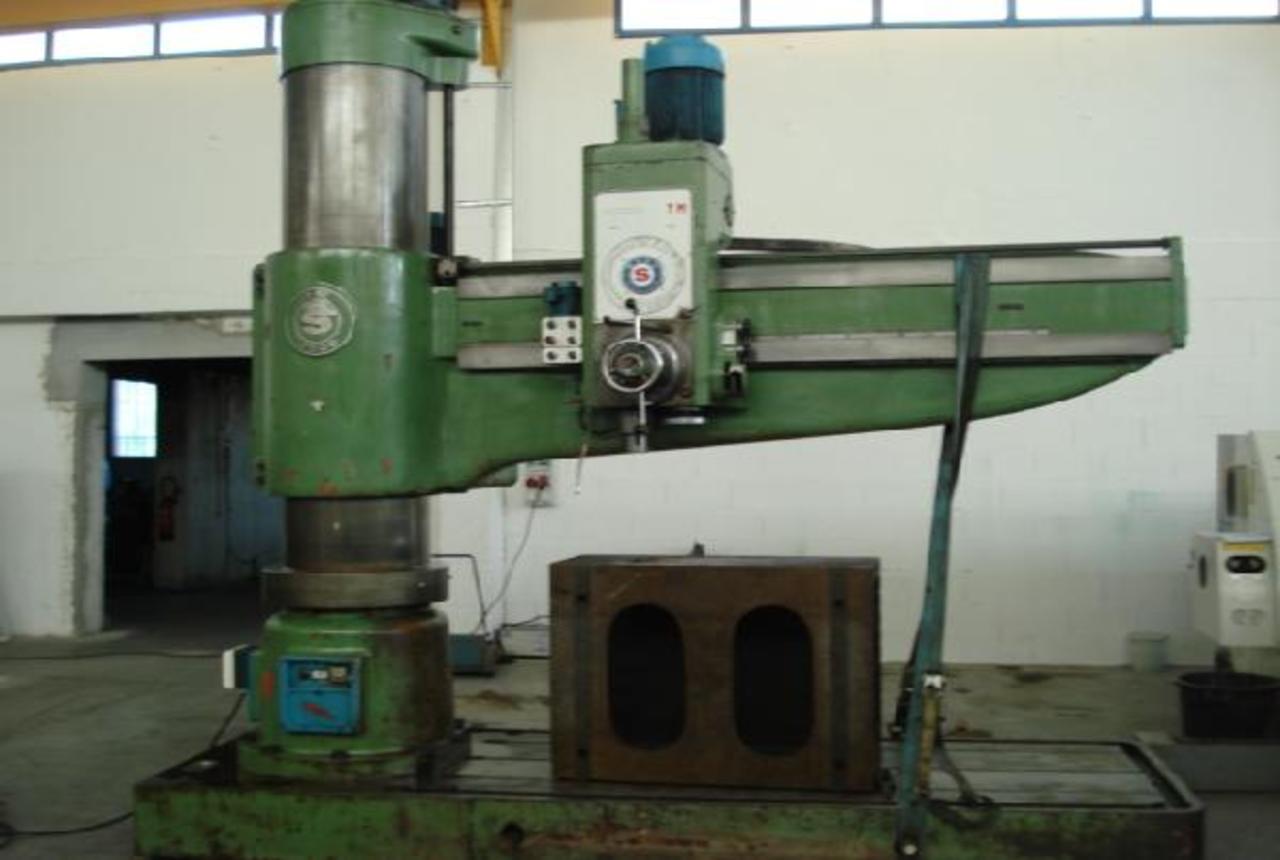

RADIAL DRILLING MACHINE

MAKE
:
BWF / OTHERS
BORE
:
80MM – 2 MACHINE, 25MM-1 MACHINE, 12MM-2 MACHINE
Z AXIS TRAVEL
:
1.0 MTR
TYPE
:
MANUAL
NUMBER OF MACHINE:
:
5

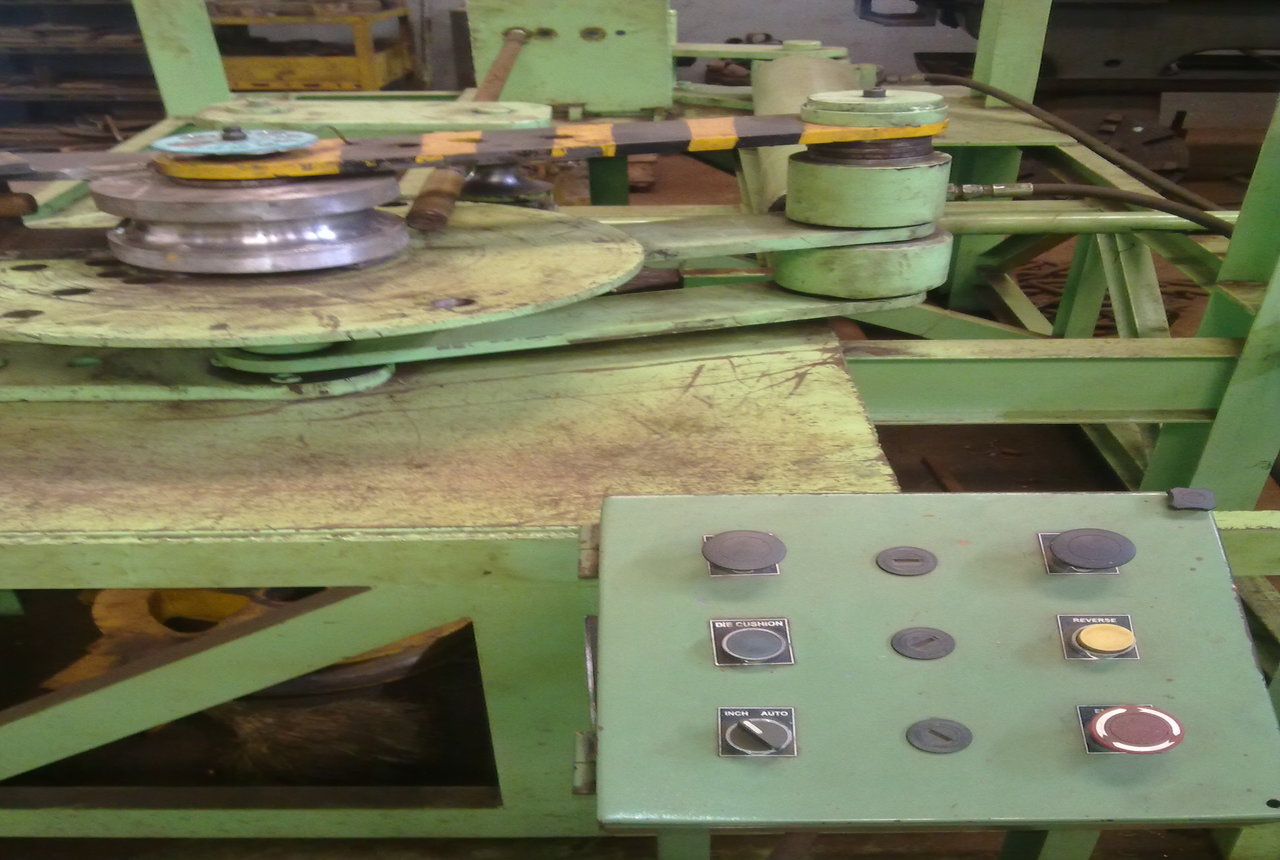

PIPE BENDING

MAKE
:
INHOUSE DEVELOPED
PIPE THK
:
4MM & ABOVE
TYPE
:
MANUAL
NUMBER OF MACHINE:
:
1

Welding Certification

ISO 9096-1 ( Welder Certification)

ISO 3834-2 ( Welding Quality Management System )

QA Team trained on Visual Inspection

Welding Co-coordinator – Level-2

Manual Welding Images

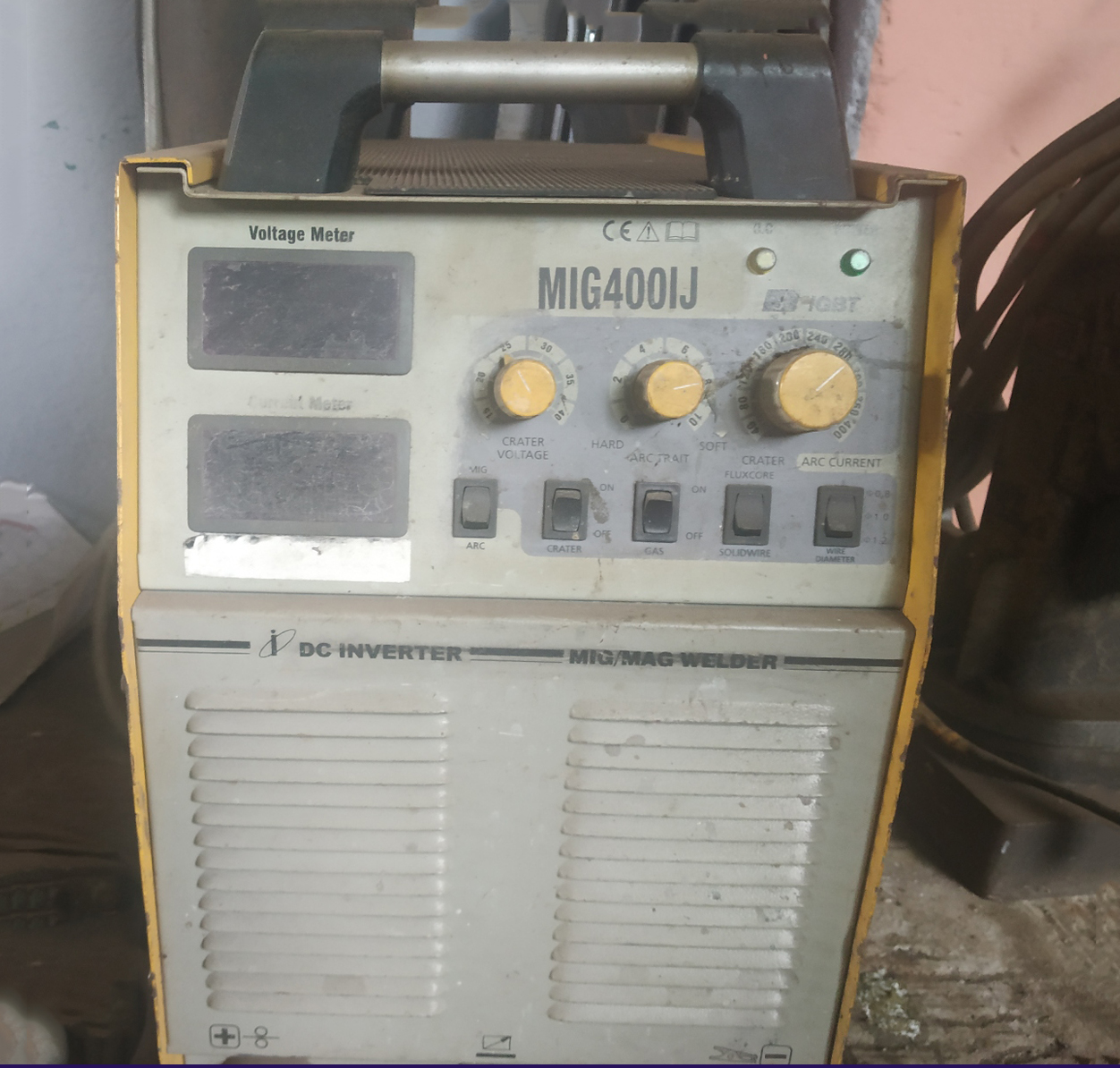

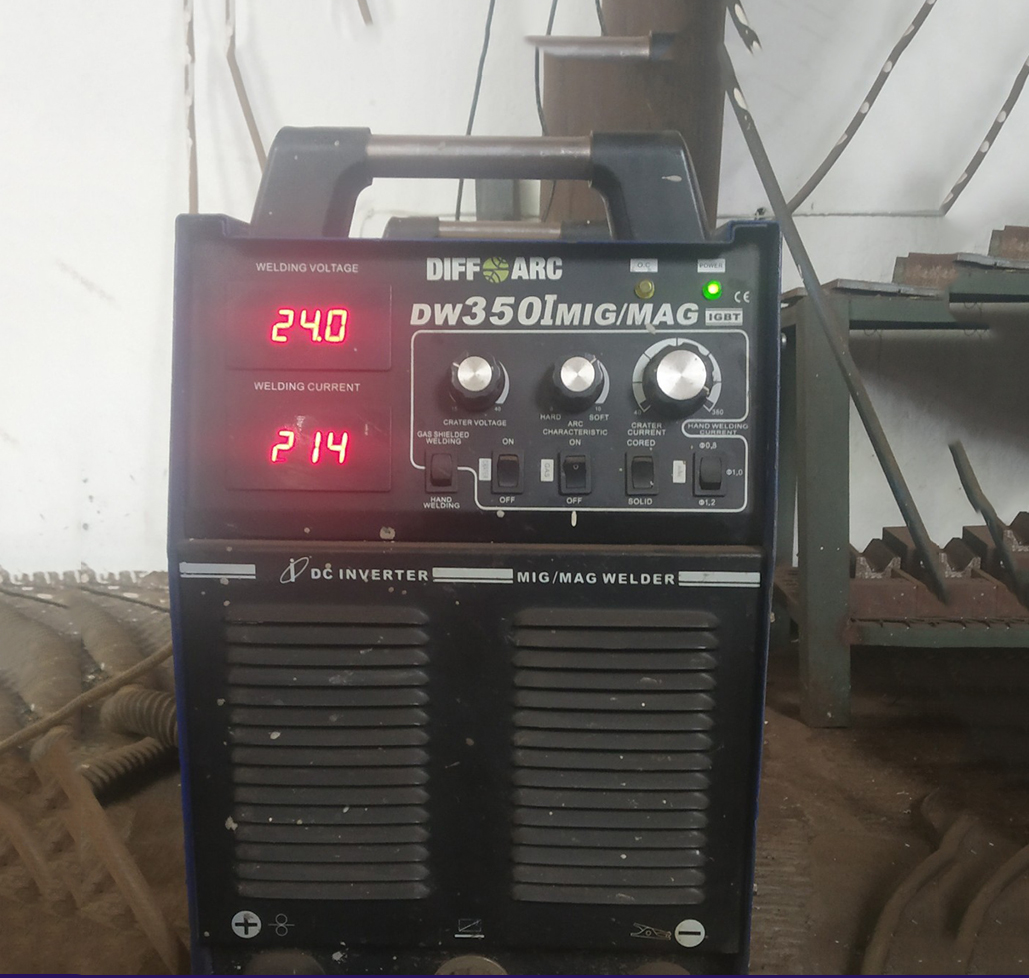

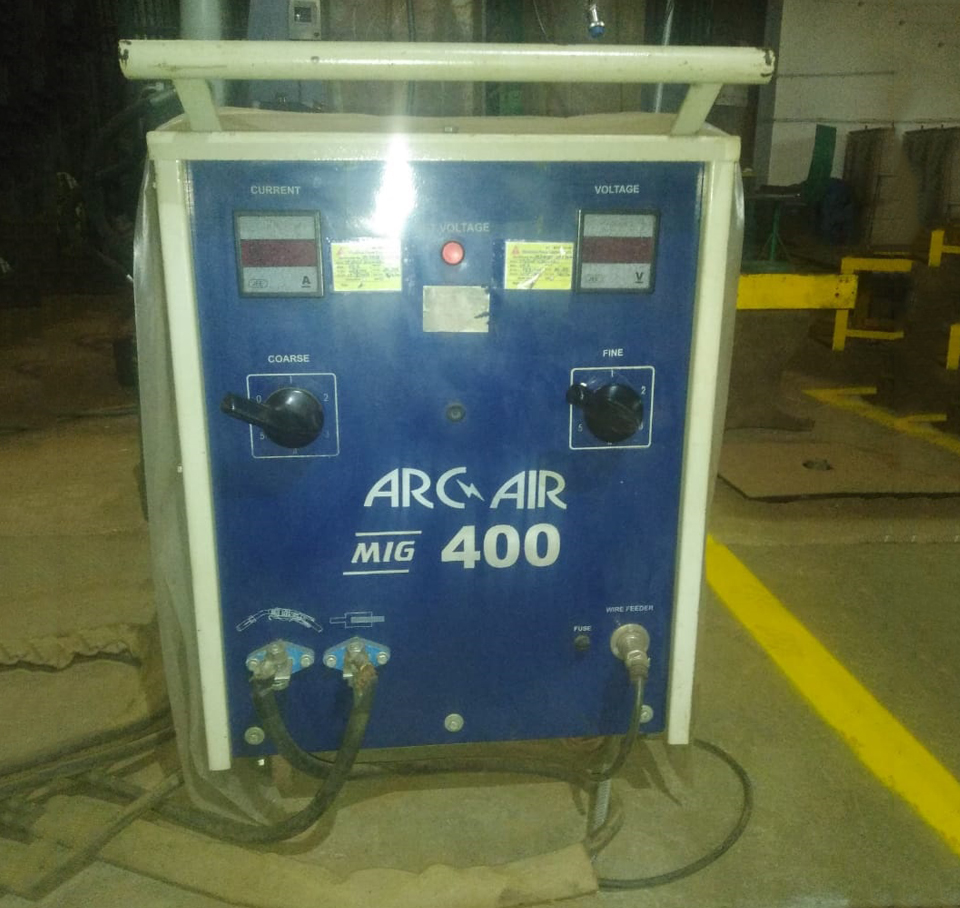

Welding Equipment
:
15+ MIG Welding Machine & 2+ Arc Welding 415V,3PH/14KVA, 400 AMPS from Air Arc, 60V/17V- 400Amp/34V From, Access Weld, 35A/21.4V – 350A/34V. Fully calibrated Machine

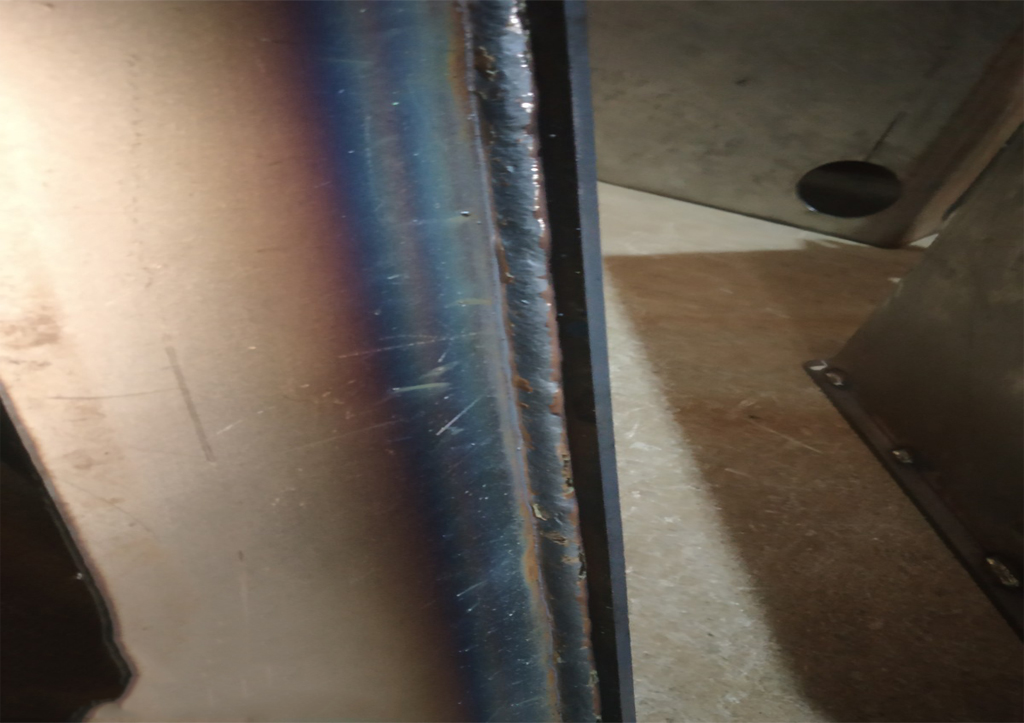

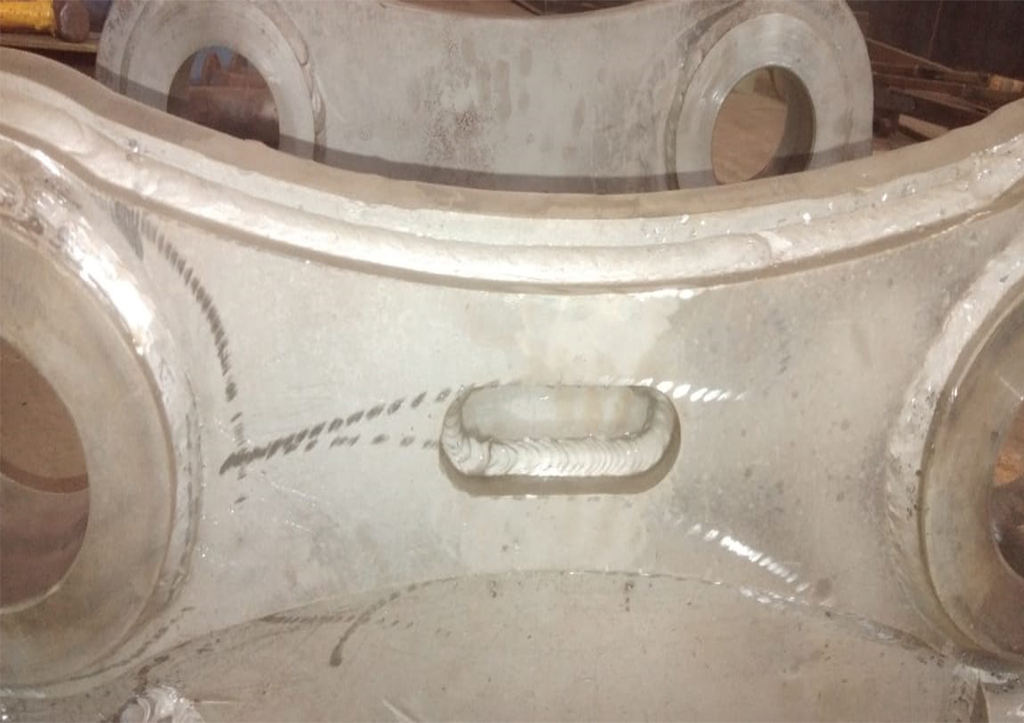

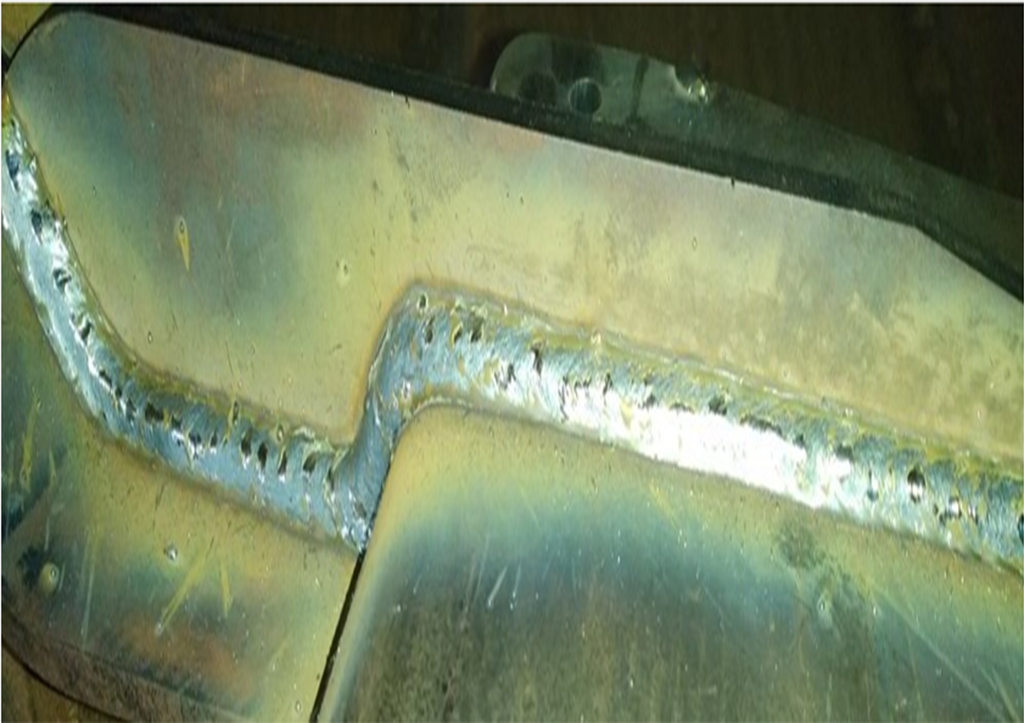

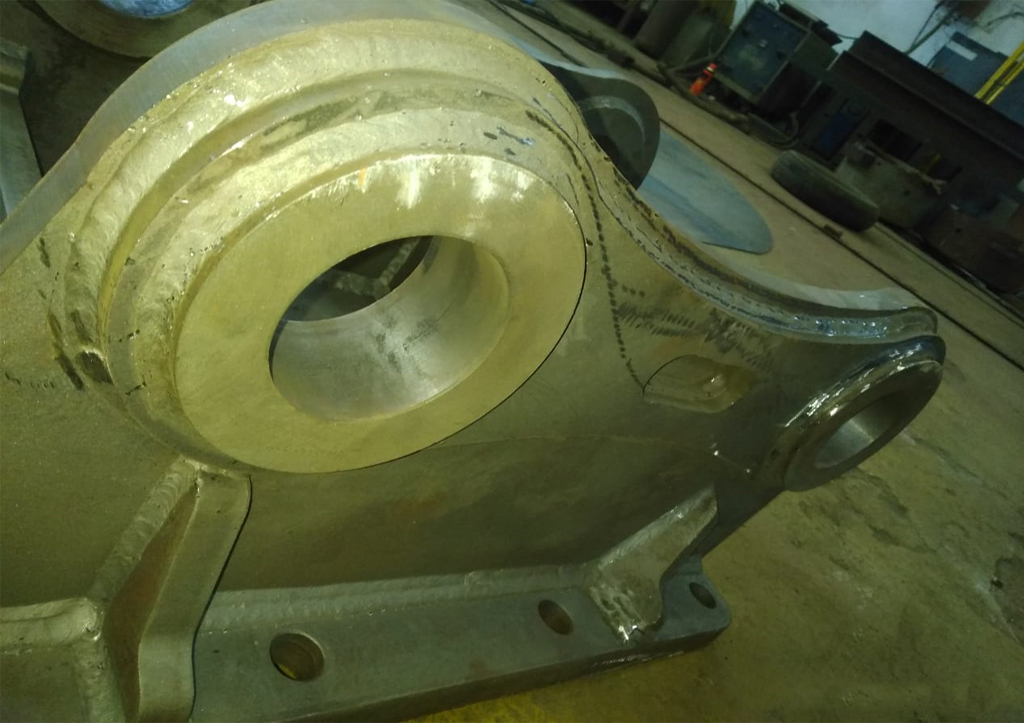

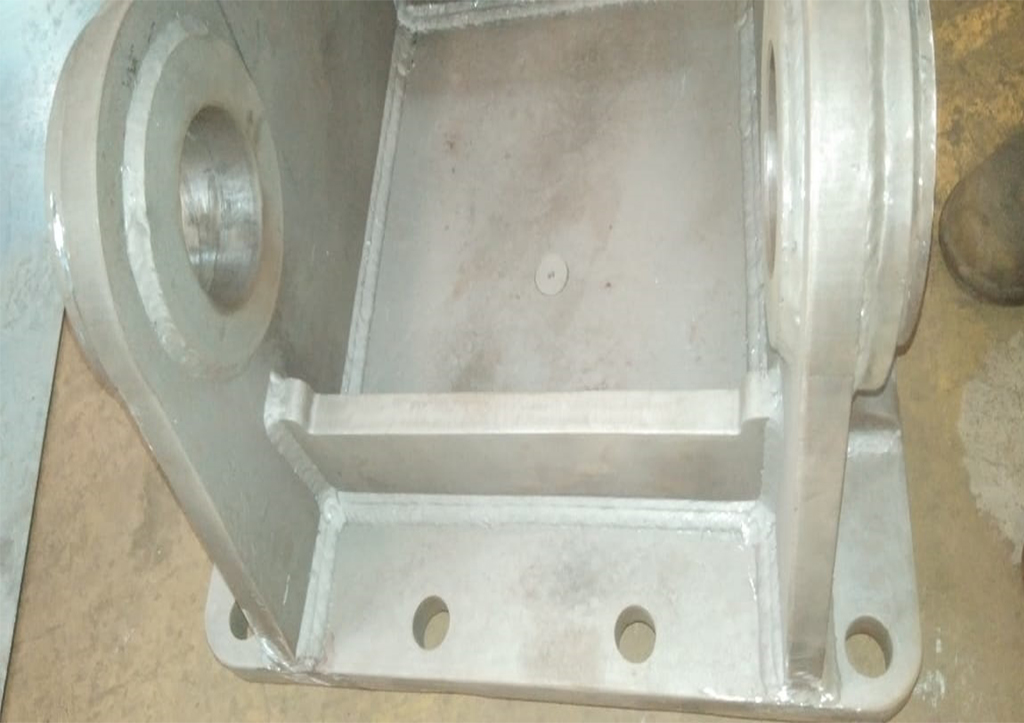

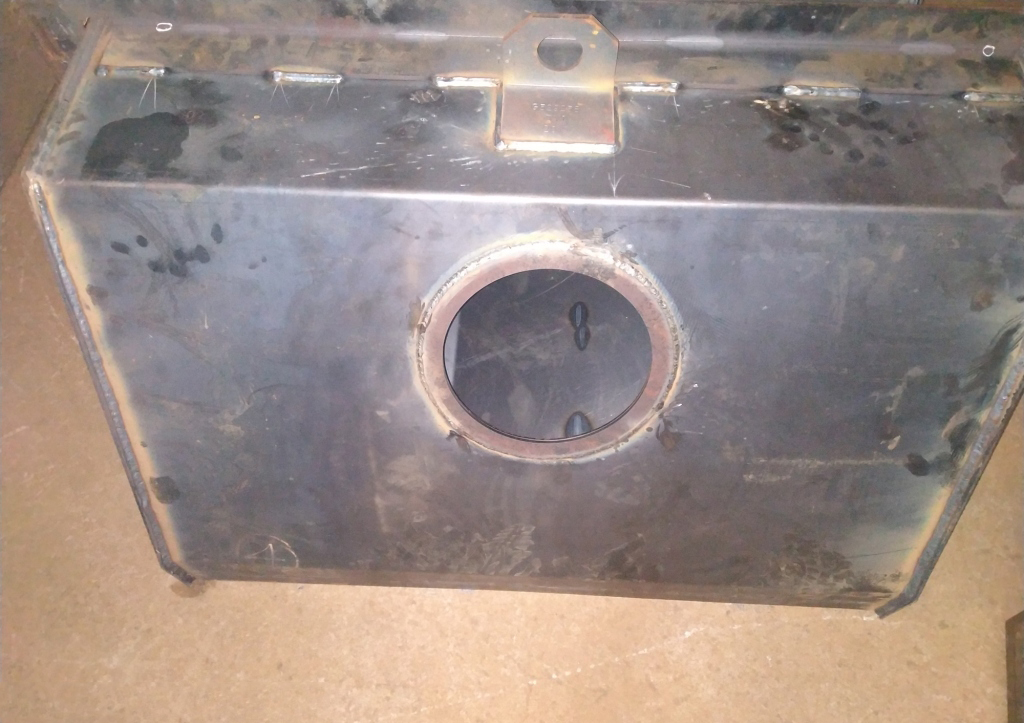

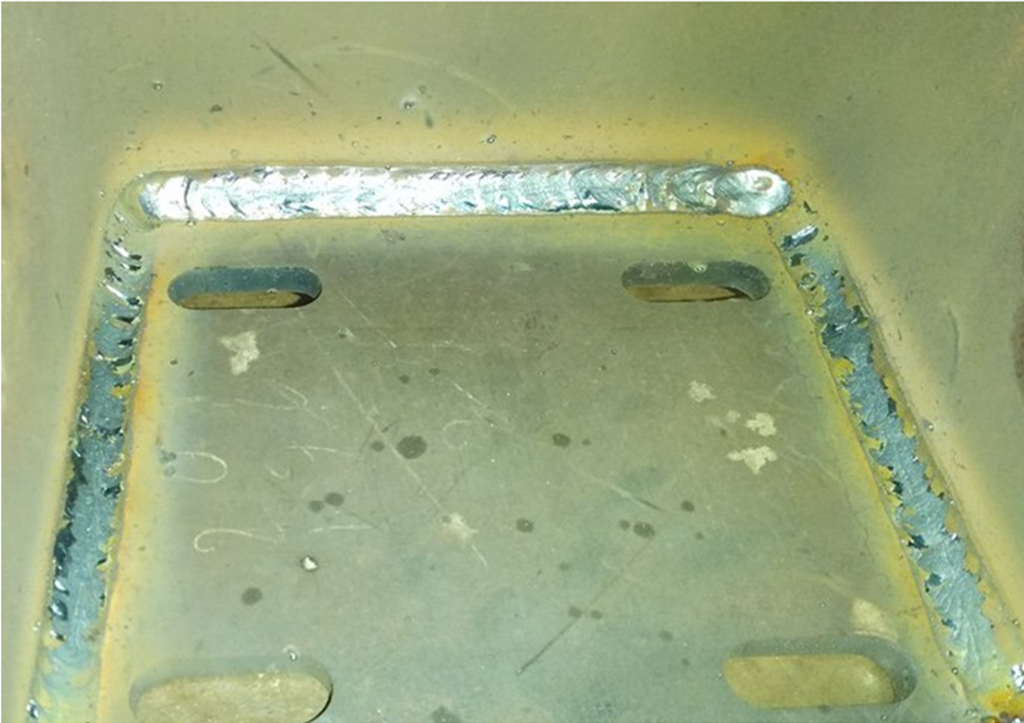

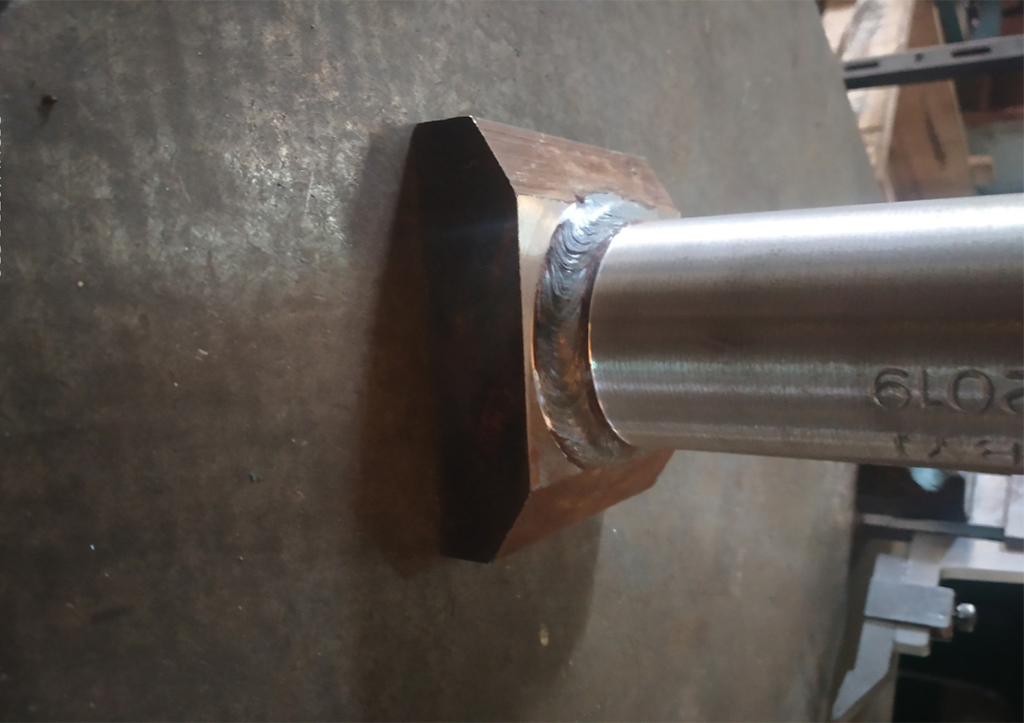

Welding sample images

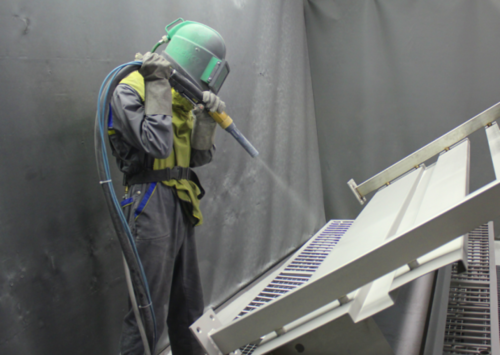

SHOT BLASTING

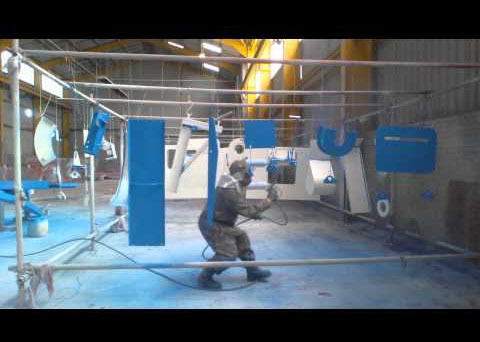

PAINTING
